Drying Oven

Natural Convection Drying Oven, Horizontal Type, DON-H, DON-HE Series


  • Volume: 43L, 71L, 136L, 225L
  • Temp. Range: RT+10-250℃
  • Temp. Resolution Ratio:0.1℃
  • Over-temperature sound-light alarm



Natural Convection Drying Oven, Horizontal Type, DON-18E, DON-18


  • Volume: 18L
  • Temp. Range: RT+10-300℃
  • Temp. Resolution Ratio: 0.1℃

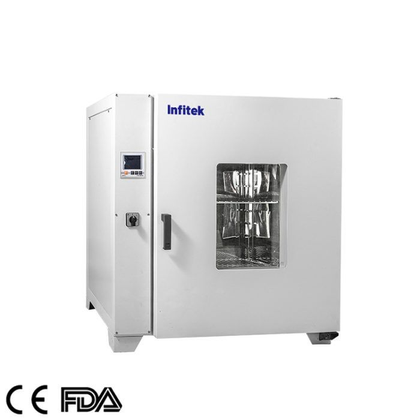

Forced Air Drying Oven, DOF-30E/ 45E/ 65E/ 125E

  • Volume:30L, 45L, 65L, 125L
  • Temperature control range(℃): RT+10-300℃
  • Temperature fluctuation(℃): ±1.0℃
  • Load per Rack: 15/kg (2 for standard configuration)
  • LED, Temperature limiter(Optional)

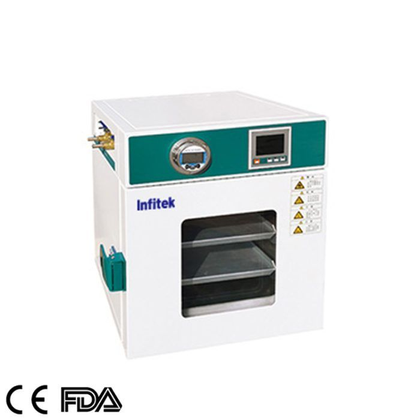

Vacuum Oven, DOV-25S, DOV-55S, DOV-90S


  • Capacity: 24L,52L,91L
  • Vacuum Degree Range: <133Pa
  • Temp. Range: RT+10-250℃


Thermal Shock Test Chamber (2 zone) , TSTC-Z42D


Forced Air Oven, LCD Screen, DOF-30/ 45/ 65/ 125


  • Volume(L): 30, 45, 65, 125
  • LCD instrument panel, optional 485 interfaces, can be connected to a computer
  • Double air ducts, Hot air circulation
  • Temperature control range(℃): RT+10-300℃
  • Load per rack: 15/kg 2 for standard configuration
  • LCD, Temperature limiter(Standard)


Forced Air Drying Oven, DOF-230E


  • Volume: 230L
  • Temperature control range(℃): RT+10-300℃
  • Temperature fluctuation(℃): ±1.0℃
  • Load per rack: 25/kg(2 for standard configuration)
  • LED, Temperature limiter(Optional)


Dual Purpose (Oven/Incubator), DOI-H Series


  • Capacity: 45L, 72L, 125L, 210L
  • Shelves: 2
  • Temperature range: Oven: 80-200℃; Incubator：RT+5-80℃
  • Safety device: Over-temperature alarm


Dual Convection Oven, DOF-H Series

  • Volume(L):43, 81, 138, 252
  • Temp. Range:RT+10℃-300℃
  • Auxiliary temp. control
  • Leakage protection
  • Natural convection, forced convection can be selected


Vacuum Oven, DOV-E II Series


  • Volume: 54L, 25L, 91L, 215L
  • Temperature Range（℃）: RT+10～250, RT+10～200℃
  • Tempered, bullet-proof double glass door
  • Microprocessor controller with LCD display


Forced Air Drying Oven, DOF-625E


  • Cycle Mode: Forced convection
  • Volume: 625L
  • Temp.Range: RT+10-300℃
  • LED, Temperature limiter(Optional)


Infrared Fast Heating Drying Oven, DON-IF Series

  • Volume(L): 43, 81, 138, 252
  • Temp. Range: RT +10～250℃
  • Leakage protector
  • Equipped with spare temperature control
  • Natural convection


Forced Air Drying Oven, LCD screen, DOF A, B Series


  • Volume: 31.5L, 72L, 136L, 225L, 429L, 624L
  • Temp.Range(℃): RT+5～200, RT+5～300
  • Shelf: 2/5, 2/7, 3/8, 3/11, 4/6, 5/6, 4/6, 5/6
  • Auxiliary temp. control
  • Leakage protection


Forced Air Drying Oven, DOF-H140-A, DOF-H250/640/960-B


  • Volume: 138L, 252L, 640L, 960L
  • Temp.Range(℃): RT+10～200; RT+10～300
  • Shelf: 3/7, 3/10, 4/15, 5/18
  • Auxiliary temp. control
  • Leakage protection



High Temperature Oven, DOF-A Series


  • Capacity: 50L, 100L, 200L
  • Temperature range: 50-400℃
  • Test hole: Optional φ25,50,80mm
  • Safety device: Leakage protector/Over- temperature alarm


Forced Air Drying Oven, DOF-V30-V240 AB Series


  • Temperature range: RT+10-250℃(A series); RT+10-300 ℃(B series)
  • Test hole：Optional φ25,50,80mm
  • Safety device: Leakage protector/Over- temperature alarm
